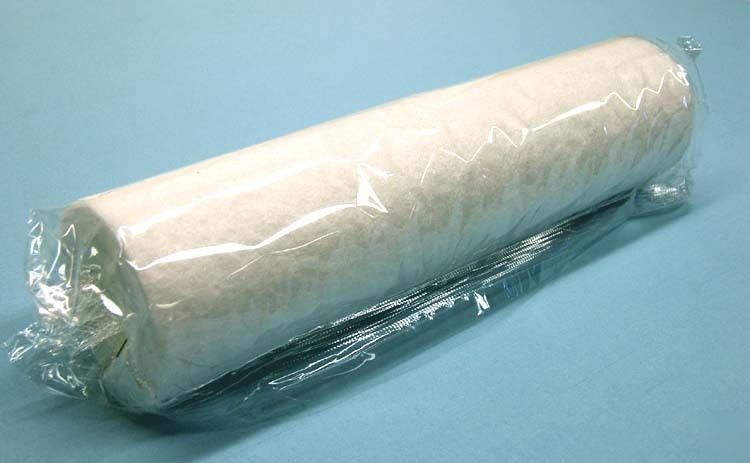

Claris melt blown filter 50 micron 9.75" cartridge pall

Claris melt blown filter 50 micron 9.75" cartridge pall
Brand NEW Sealed Condition
Pall Corp Ryan Herco Flow Solutions Filter Cartridge
Claris Advanced Melt Blown Depth Filter Element Cartridge
Claris PP Filter 50 Micro 9.75" Cartridge
OD Outside Diameter: 2-1/2"
* Consistent filtration performance.
* High dirt holding capacity Longer life means fewer change outs.
* Maintains integrity even with viscous liquids or high differential pressures.
* Thermally bonded fibers mean no unloading of contaminants.
* Long on-stream life means cost effective filtration.
* 100% high purity polypropylene for excellent chemical resistance.
* Individually wrapped with a fin seal polypropylene wrapper.
* Product descriptions printed on wrapper for easy identification.
* Graded pore structure means less resistance to flow and greater dirt holding capability.
* Beverage: Bottled water, wine, beer, fruit juice, soft drinks.
* Chemical Manufacturing: Acrylates, alcohols, bleach, alkalis, strong acids.
* Cosmetics: Water, mineral oils, mouthwash, lotions, soaps.
* Laboratory: Pretreatment water systems.
* Metal Finishing: Machine coolants, plating solutions, anodizing, plating chemicals, cleaning chemicals, stripping solutions, clean hydraulic press oil, parts washing.
* Pharm/Chemical: Diagnostic labs (prefilters), RO prefilters.
* Photographic: Film processing (television), hot/cold water, DI water, developer, fixer, x-ray printing.
* Plastics Manufacturing: Recirculated quench water, cooling tower water, additive streams.
* Potable Water: RO and DI prefiltration, desalination, POU drinking water.
* Power Generation: Uranium mining, nuclear & fossil fuel plants, DI water for boiler feed.
* Pulp and Paper: Squirter lines, waste treatment.
* End configurations also available: DOE with seal, DOE with 1" extended core, SOE (222) with flat closed end, SOE (222) with fin end.
* Filter media: Polypropylene.
* DOE industrial cut ends standard.
* Optional end caps: Polypropylene.
* Optional extended core: Polypropylene.
* Optional gaskets/O-rings/seals available in Silicone, Buna N, Viton A, EPDM and Polyethylene (PE).
* All materials used in Claris filters are certified to meet the requirements of the Food and Drug Administration (FDA) Title 21 of the code of Federal Regulations 177.1520.
* All cartridge components meet USP XXIII, Class VI toxicity criteria. They are safe for use in pharmaceutical applications.
* Max. operating pressure/temperature: 50 PSID (3.45 bar) @ ambient; 25 PSID (1.72 bar) @ 140 F (60 C).
* Recommended changeout differential pressure: 35 PSID (2.41 bar).
* Nominal dimensions: Outside Diameter - 2.5" (64 mm); Inside Diameter - 1" (25 mm) - Lengths: 9.75" to 40" (248 mm to 1016 mm).
